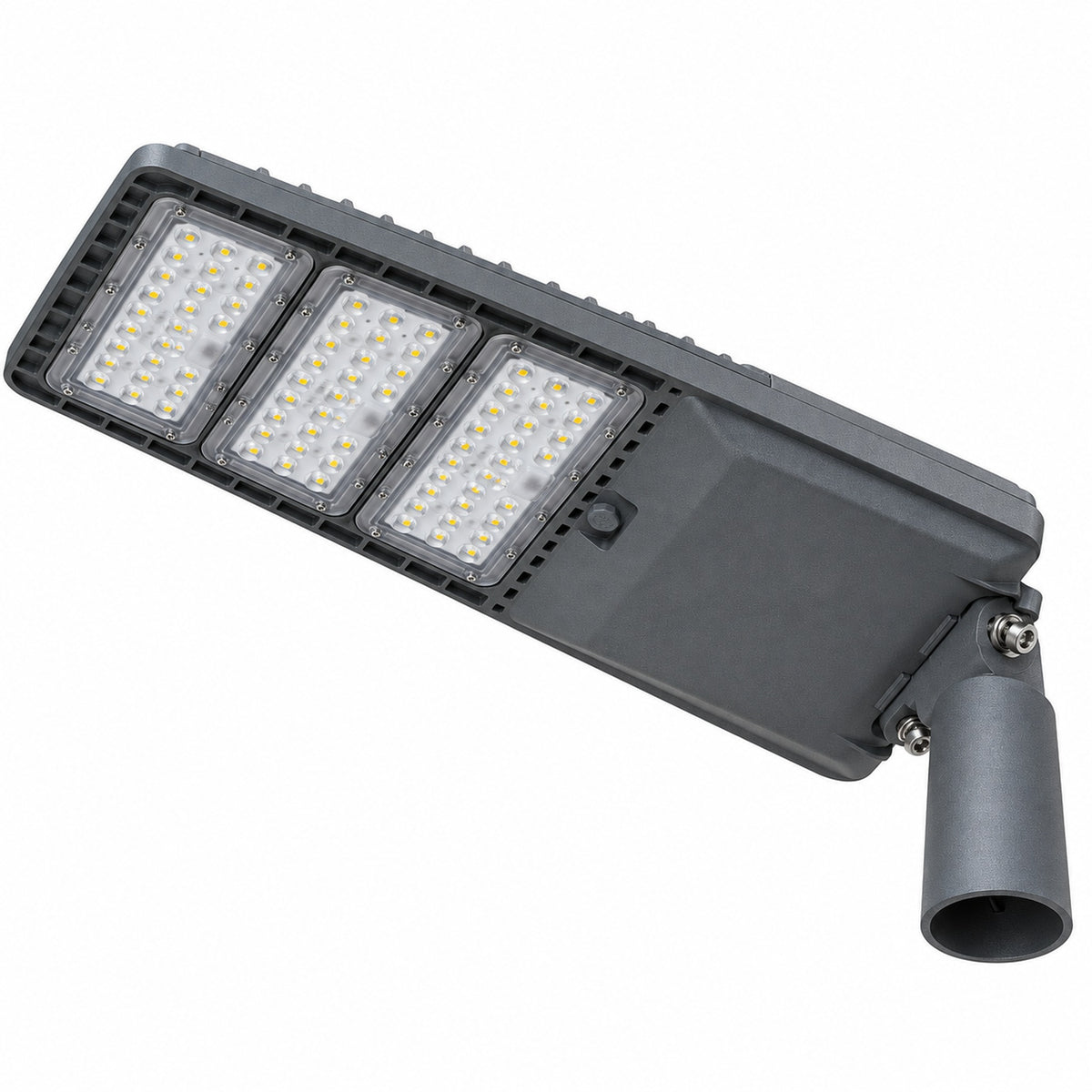

Landlite LED street light 150 W, 4000 K, 25,500 lm – 12OT840

150 W · 25,500 lm · 170 lm/W – powerful, uniform light for roads, car parks and industrial sites.

The Landlite 12OT840 is a high-output LED street light with neutral white (4000 K) light and Type 3 light distribution. The die-cast aluminium housing offers IP67 protection and IK10 impact resistance, while the wide 100–277 V input range and built-in surge protection ensure reliable operation on outdoor networks.

Key benefits

• High output, low consumption. 25,500 lm nominal luminous flux at 150 W – approx. 170 lm/W efficacy.
• Type 3 light distribution. Wide, road-oriented light spread for uniform lighting of roads, car parks and sites.
• Rugged outdoor design. IP67 / IK10, grey die-cast aluminium housing, Lumileds 5050 SMD LEDs, operating temperature −35 °C to +50 °C.
• Protection against mains disturbances. Surge protection L/N–PE: 10 kV, L–N: 6 kV; power factor >0.95.

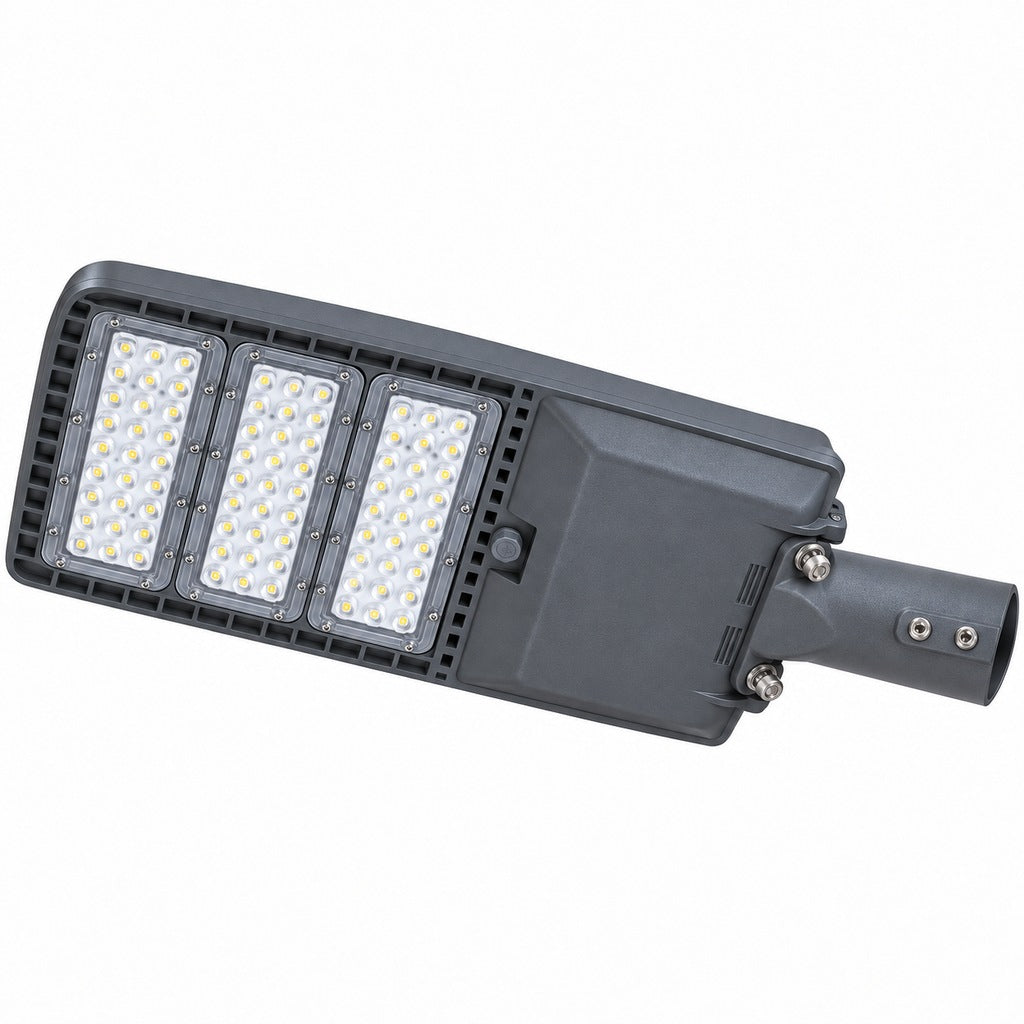

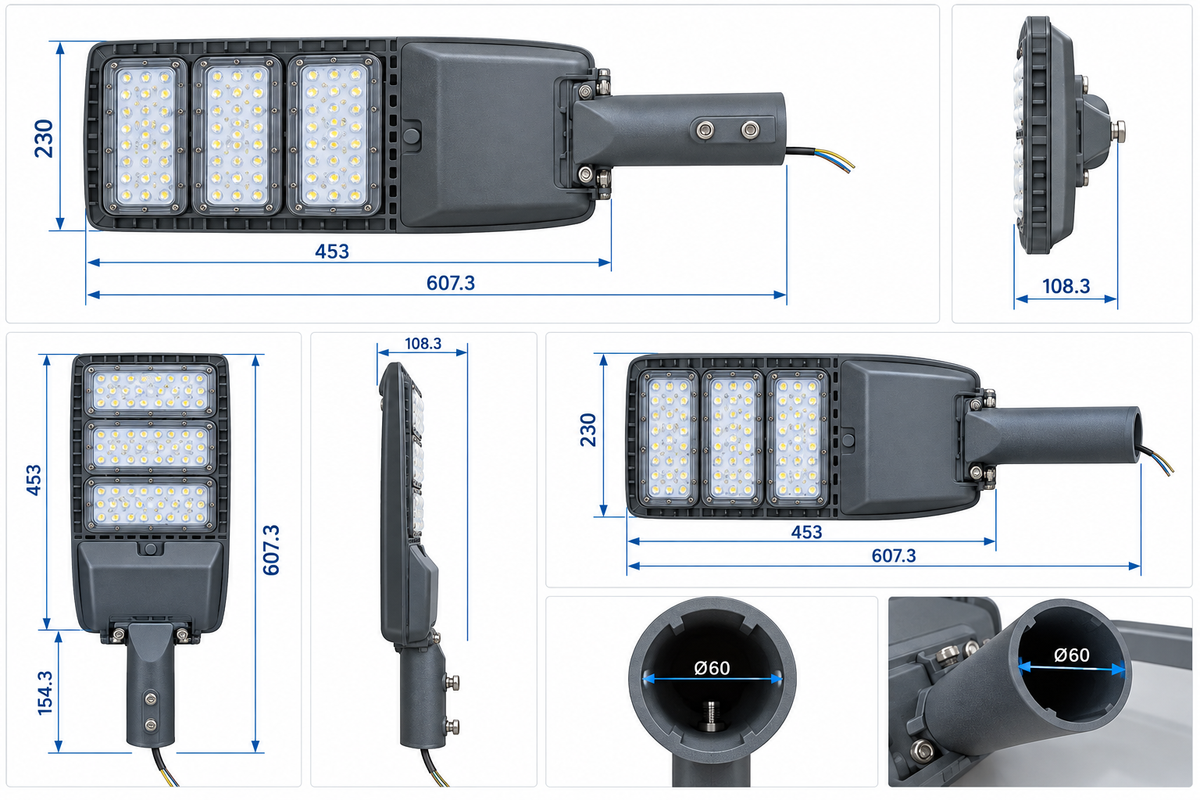

• Flexible mounting. Ø60 mm spigot for horizontal (pole arm) or vertical (post-top) mounting.

Technical specifications

Mounting and accessories

Wall brackets, pole reducers and pole-top distributors can be found in the LED pole lights and accessories category. Please check the pole diameter before ordering.

Applications

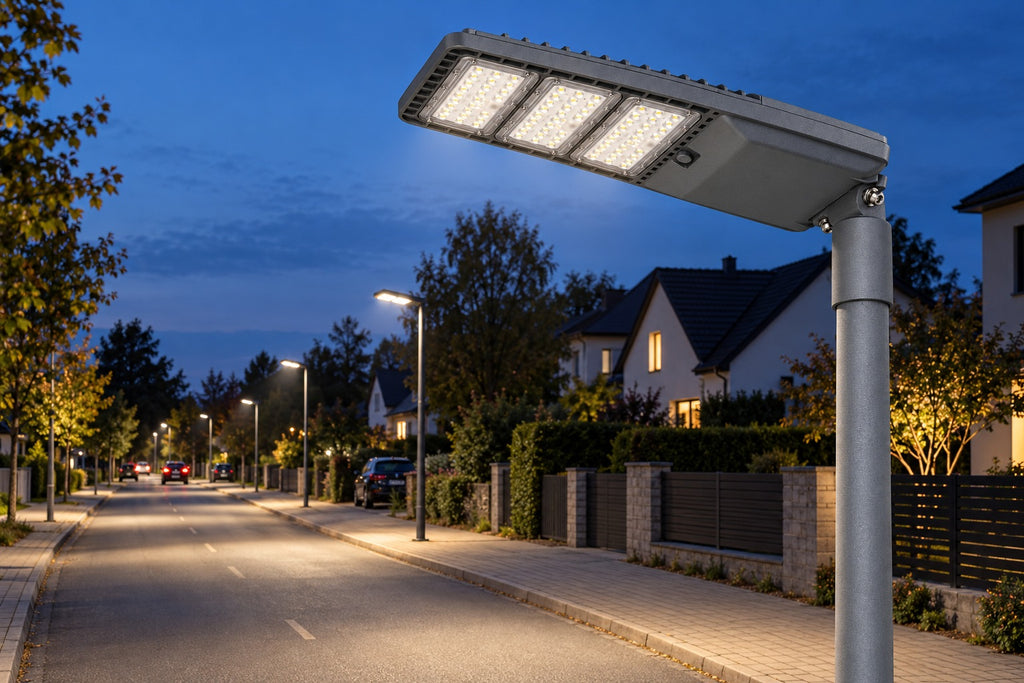

• Urban and residential roads, collector roads

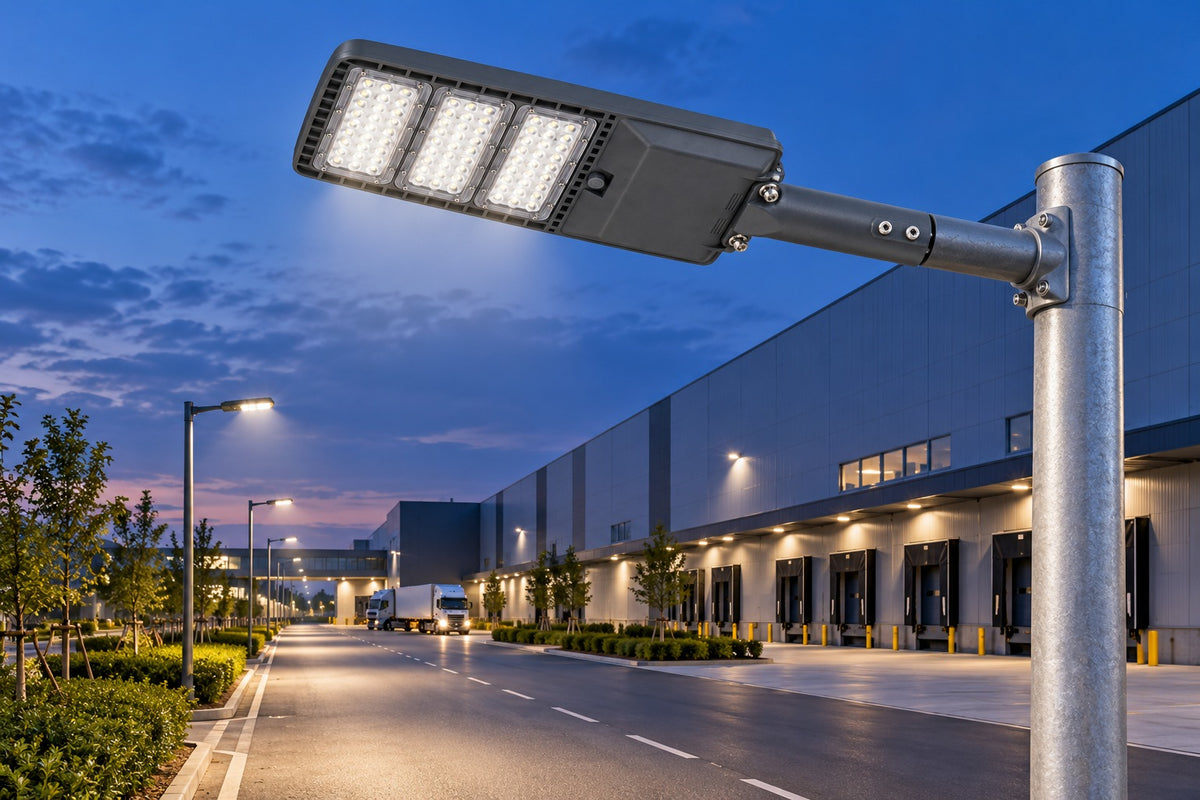

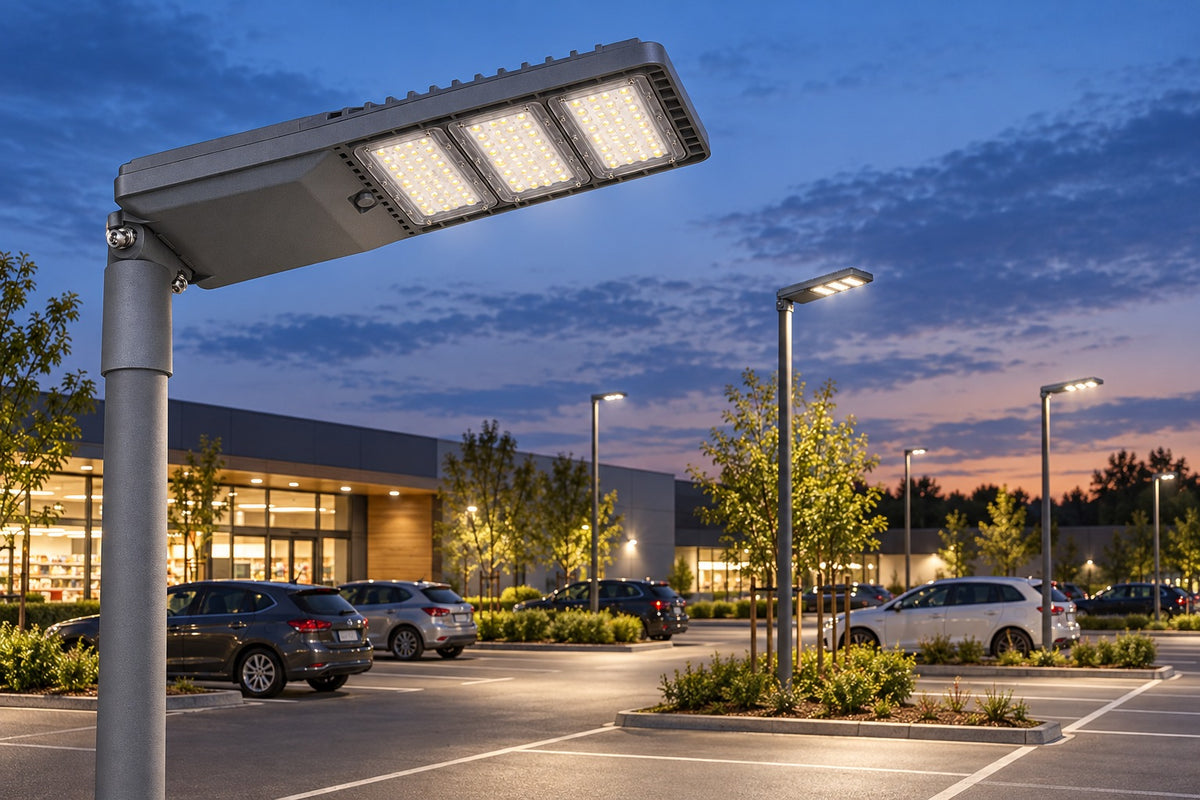

• Car parks, logistics and industrial sites

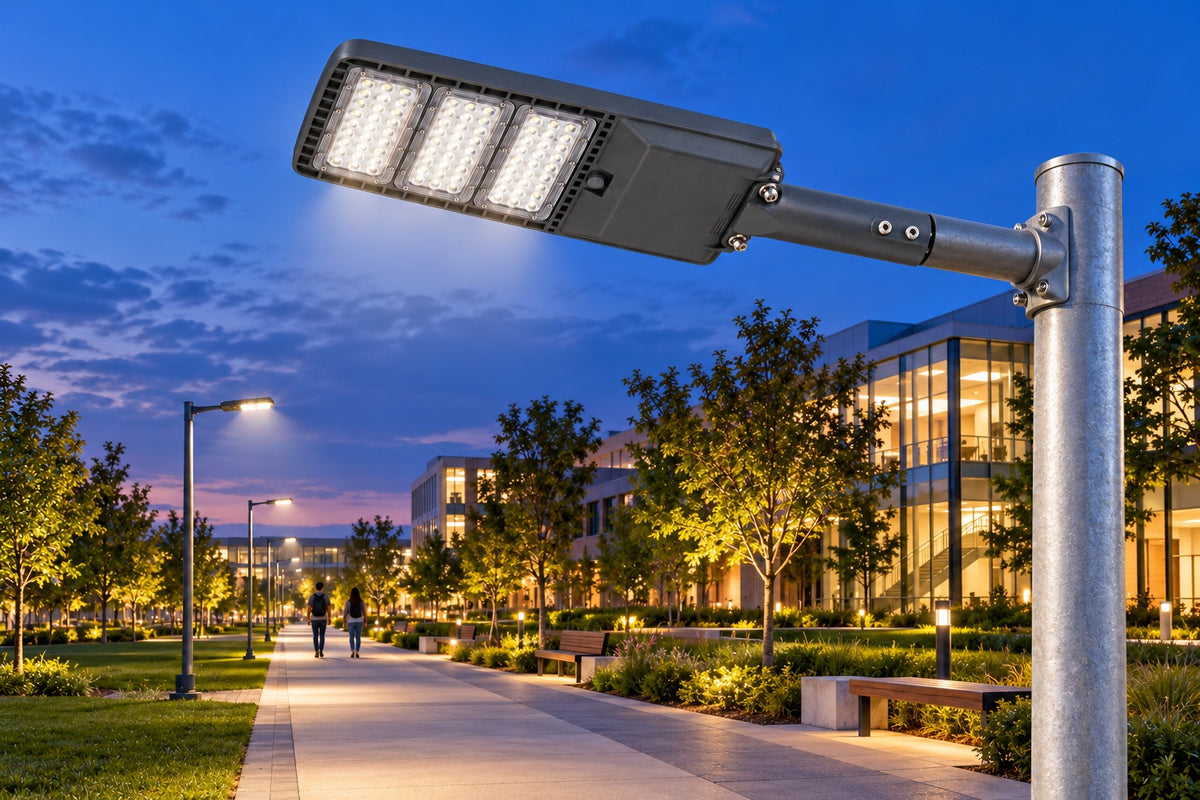

• Campuses, parks, walkways and cycle paths

Pole height and luminaire spacing must be determined by lighting design – our team is happy to help.

Photometric documentation

The V7690-150-X T3 4000K photometric report records 26,674 lm and 148.31 W for the tested sample. These are sample measurements; the nominal luminous flux of 12OT840 is 25,500 lm. The report and the LDT/IES light distribution file are available on request.

Frequently asked questions

Which poles can the Landlite 12OT840 be mounted on?

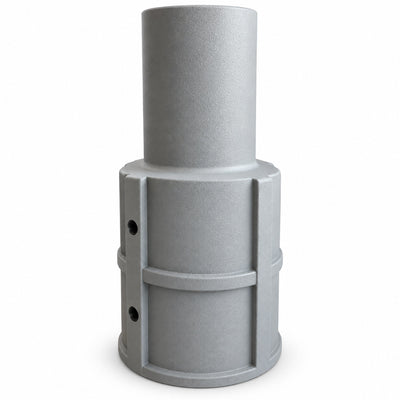

The luminaire has a Ø60 mm spigot and mounts directly on Ø60 mm poles or arms – horizontally (pole arm) or vertically (post-top). For Ø76 mm poles, the Landlite 12OT841 conversion adapter is required. For wall mounting, use the ROLUX wall brackets with a Ø60 mm spigot: 311020083 (straight) or 311020084 (15° tilt).

Which areas is it suitable for?

With 150 W, 25,500 lm and Type 3 light distribution, the luminaire is designed for urban and residential roads, collector roads, car parks, and logistics and industrial sites. Pole height and luminaire spacing must be determined by lighting design; we send the LDT/IES light distribution file on request.

How robust is it outdoors?

The die-cast aluminium housing is rated IP67 and IK10 impact resistant, with an operating temperature range of −35 °C to +50 °C. Built-in surge protection is L/N–PE: 10 kV and L–N: 6 kV, and the input voltage range is 100–277 V AC.

Series

The 12OT840 is part of the Kaito LED street lighting series – compare it with the 50 W pole and wall lights of the series in the table below.

Installation must be carried out by a qualified electrician with the power disconnected; the protective earth conductor must be connected. Images show mounting and application examples; adapter and pole are not included. Subject to technical changes.
